ATek LaserWorks

Fiber X-GT
Covered Gantry Fiber Laser Cutting Machine

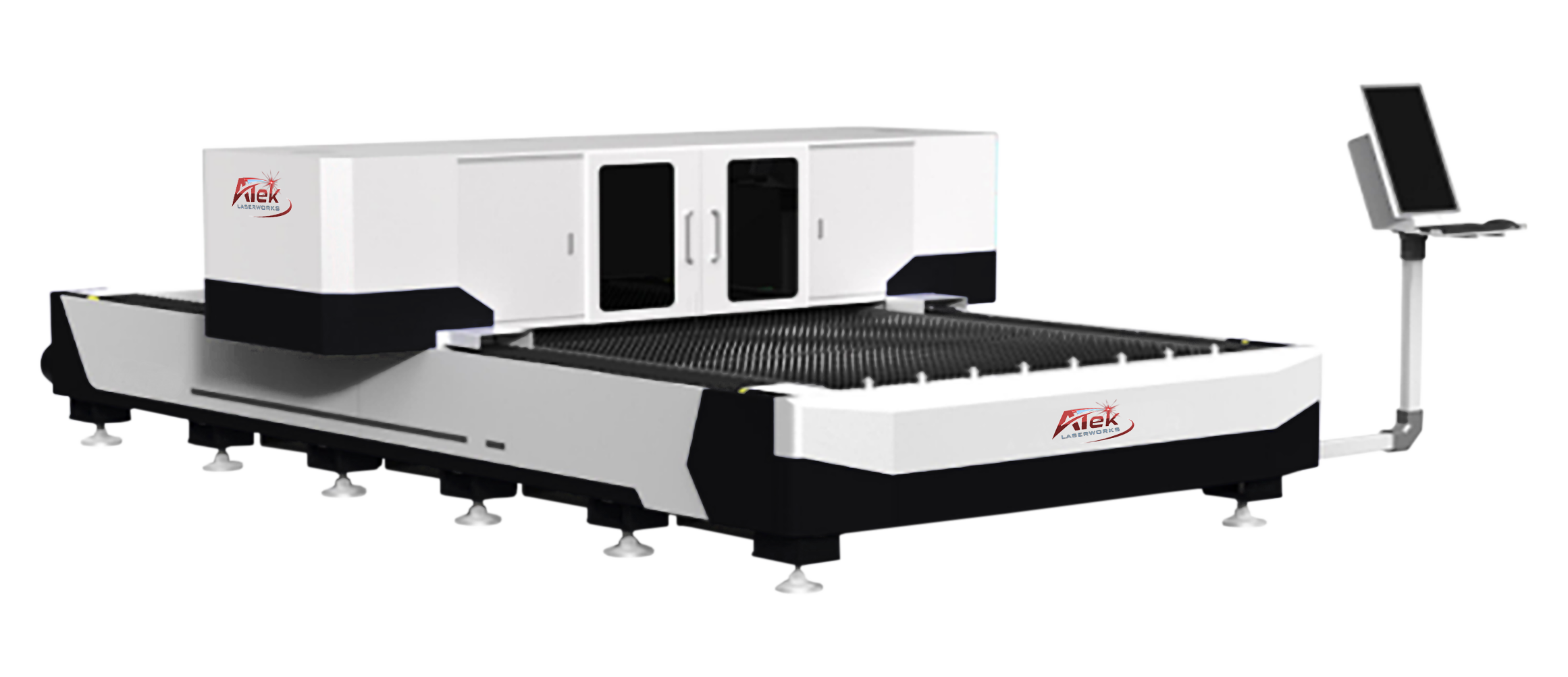

ATek LaserWorks Fiber X-GT Gantry Table Fiber Laser Cutting Machine

A fully enclosed gantry and laser head with exclusive optical fiber wavelength visible protection window and dust removal system that meet all environmental standards. Every detail promises a safe and pollution-free environment.

4G
Max Acceleration
9,500ipm
Rapid Speed
8.5' × 20'
Max Sheet Size
2.35"
Max Mild Steel (20kW)
REQUEST A QUOTE VIEW FULL SPECS
Performance Advantages

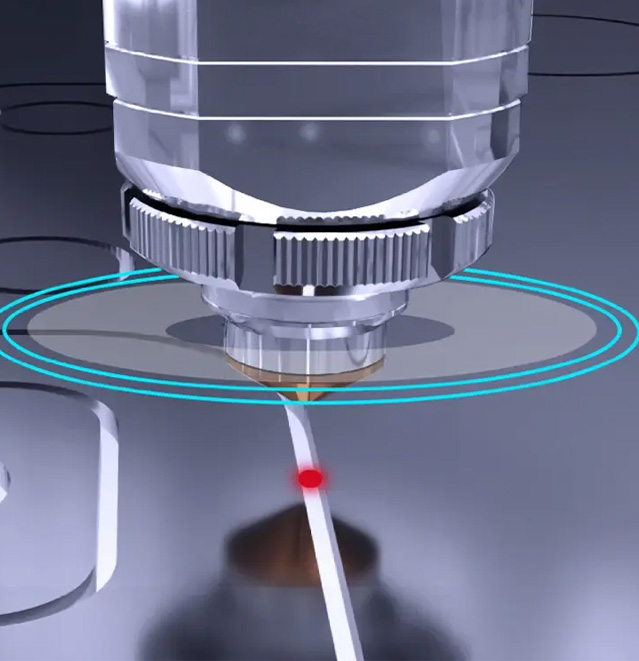

Laser Auto Focusing

AUTO FOCUSING LASER HEAD

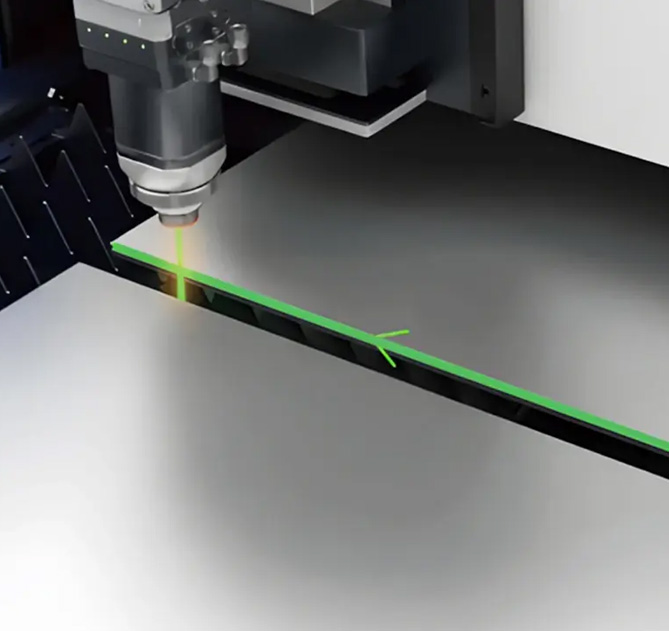

Quick Cut-off Laser

Quick Cut-Off – Faster Part Separation

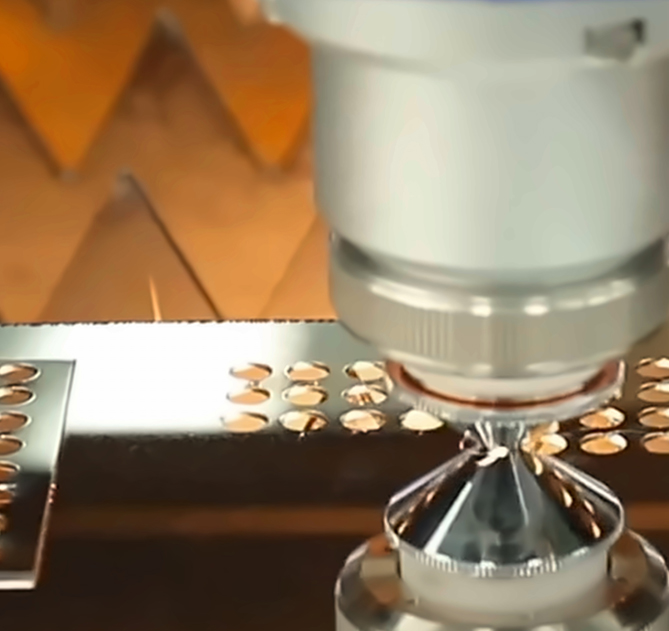

Fly-Cut Laser

Fly Cut – High-Speed Continuous Cutting

Safe & Pollution Free

Robust Mechanical Structure

Enhanced Efficiency & Accuracy

Extremely Low Operating Cost

Built For Safe, Continuous Production

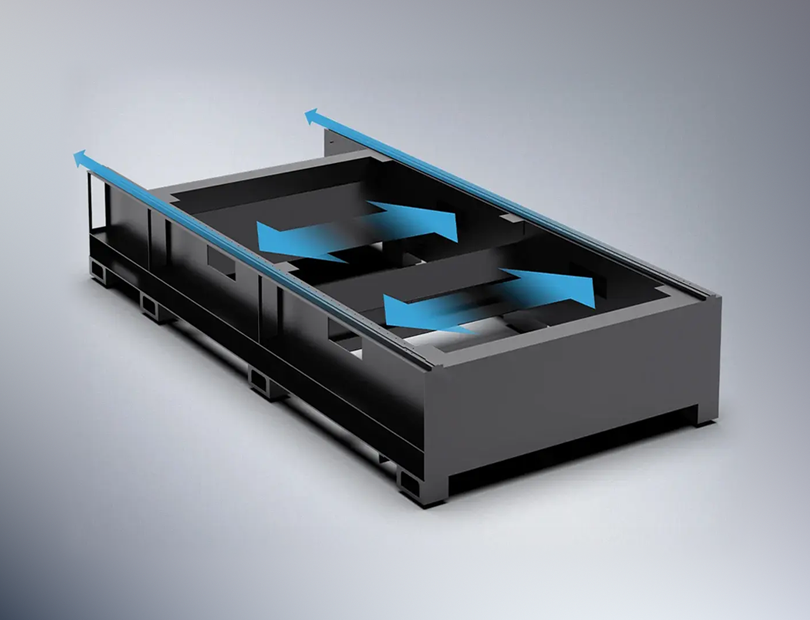

Fiber X-GT Partitioned Smoke and Dust Extraction

Partitioned Smoke & Dust Extraction

Each suction port operates independently, efficiently targeting specific zones to maximize smoke and dust removal. Ensures a safer, cleaner cutting environment even during continuous heavy-duty operation.

Fiber X-GT Collision Protection

Collision Protection

The laser cutting head automatically skips or bypasses tilted workpieces, smoothly moving to the next processing position to avoid collisions, effectively reducing the laser head's damage rate.

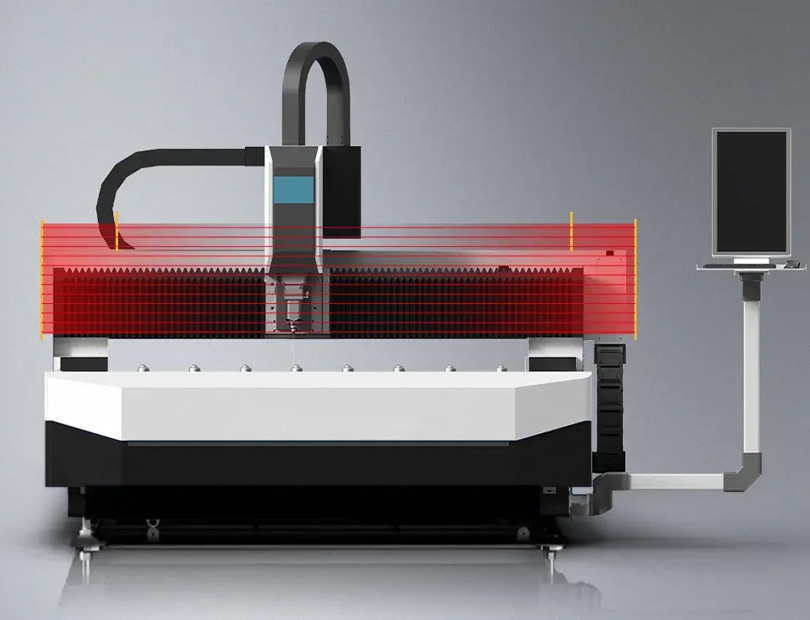

Fiber X-GT Optical Safety Grid

Optical Safety Grid

Precision light grating detects crossbeam movement in real time and halts operation if an object enters the risk zone. Provides reliable protection for operators and equipment, maintaining uninterrupted, safe production.

Laser vs Plasma Cutting

Precision, speed, and efficiency compared

Laser Cutting

  • Tight tolerances ±0.01 to ±0.05 mm
  • Clean edges, no burrs
  • 2× Faster on Thin Materials
  • Lower Energy Consumption
  • Can Cut Almost any Material
  • Less Labor: No Finishing

Plasma Cutting

  • Looser Tolerances ±1 to ±3mm
  • Slag and burrs
  • Faster on Thick Materials
  • Higher energy usage
  • Conductive Metals Only
  • More Labor: Requires Grinding/Finishing

Machine Specifications

MODELS
5' x 10'
7' x 13.5'
5' x 20'
7' x 20'
8.5' x 20'
OPERATIONAL DATA
SHEET LENGTH
122" (3100 mm)
157" (4000 mm)
244" (6200 mm)
315" (8000 mm)
315" (8000 mm)
SHEET WIDTH
63" (1600 mm)
78" (2000 mm)
98" (2500 mm)
98" (2500 mm)
98" (2500 mm)
ACCELERATION
4 G
2.8 G
2.8 G
2.8 G
2.8 G
RAPID SPEED
9500 ipm (240 m/min)
7875 ipm (200 m/min)
7875 ipm (200 m/min)
7875 ipm (200 m/min)
7875 ipm (200 m/min)
WORKPIECE WEIGHT Weights are given for a 3" steel plate (40kW)
5950 lbs (2700 kg)
9700 lbs (4400 kg)
26100 lbs (12000 kg)
31300 lbs (14100 kg)
31300 lbs (14100 kg)
MACHINE DIMENSIONS
TOTAL LENGTH
389" (9880 mm)
468" (11890 mm)
655" (16640 mm)
777" (19750 mm)
777" (19750 mm)
TOTAL WIDTH
126" (3198 mm)
138" (3520 mm)
157" (4000 mm)
158" (4020 mm)
158" (4020 mm)
TOTAL HEIGHT
105" (2680 mm)
105" (2680 mm)
105" (2680 mm)
105" (2680 mm)
105" (2680 mm)
WEIGHT This corresponds to machine weight with standard equipment. Does not include the laser source, chiller, and dust collector.
35250 lbs (16000 kg)
45200 lbs (20500 kg)
56000 lbs (25400 kg)
56000 lbs (25400 kg)
56000 lbs (25400 kg)
12KW LASER MAX. THICKNESS
MILD STEEL
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
STAINLESS STEEL
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
ALUMINUM
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
COPPER
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
BRASS
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
20KW LASER MAX. THICKNESS
MILD STEEL
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
STAINLESS STEEL
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
ALUMINUM
2" (50 mm)
2" (50 mm)
2" (50 mm)
2" (50 mm)
2" (50 mm)
COPPER
0.5" (12 mm)
0.5" (12 mm)
0.5" (12 mm)
0.5" (12 mm)
0.5" (12 mm)
BRASS
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)

Machine Controller Software

Full 3D Environment

Three dimensional recreation in real time of machine, it's operations, and nest being cut.

Straightforward, simple UI

Sleek, clean, and easy to use UI offers next level performance with simple, straightforward controls.

Power Loss Recovery

Our built-in Nest Recovery tool will come to your aid if unexpected power loss happens during production. Follow a few easy steps to get your nest and all your settings back quickly.

Nesting Software

Powerful, yet intuitive nesting software is at your fingertips. Providing a plethora of tools and user adjustable options to make this usually time-consuming part of the manufacturing process a breeze.

Steel Solutions Nesting Software

Plate Nesting
  • ◆ Intuitive Plate Nesting Software Pre-Installed on Controller.
  • ◆ Auto-Nesting with User Assigned Parameters Increases Overall Throughput.
  • ◆ Help Video Library and Service Tech Chat with Maintenance Plan.

Full CAD/CAM Part Editing Package

CAD Editing
  • ◆ Easily Edit Your DXF/DWG Drawing Files.
  • ◆ Generate Lead-Ins / Lead-Outs.
  • ◆ Built-in 3D Part Viewer.

Customizable Shape Library

Shape Library
  • ◆ Large Array of Standard Shapes for Commonly Made Parts.
  • ◆ Chain/Commonline Cutting Options.
  • ◆ Save Custom Parts To Library for Quick Loading.

Built-In Remnant Manager

Remnant Manager
  • ◆ Keep Track of all Leftover Remnants.
  • ◆ Customize Settings for Criteria for Leftover Remnants.
  • ◆ Load Leftover Remnants as Plates to Nest Parts On.

OPTIONAL ADVANCED UPGRADES AVAILABLE

  • ◆ Structural DXF Importing
  • ◆ 3D Importing From Solidworks or Inventor
  • ◆ DSTV+ Importing
  • ◆ Structural Part Multing
  • ◆ Assembly Marking

Ready To See The Fiber X-GT Up Close?

Talk with our team about your materials, thickness range, and production goals.

REQUEST A QUOTE
